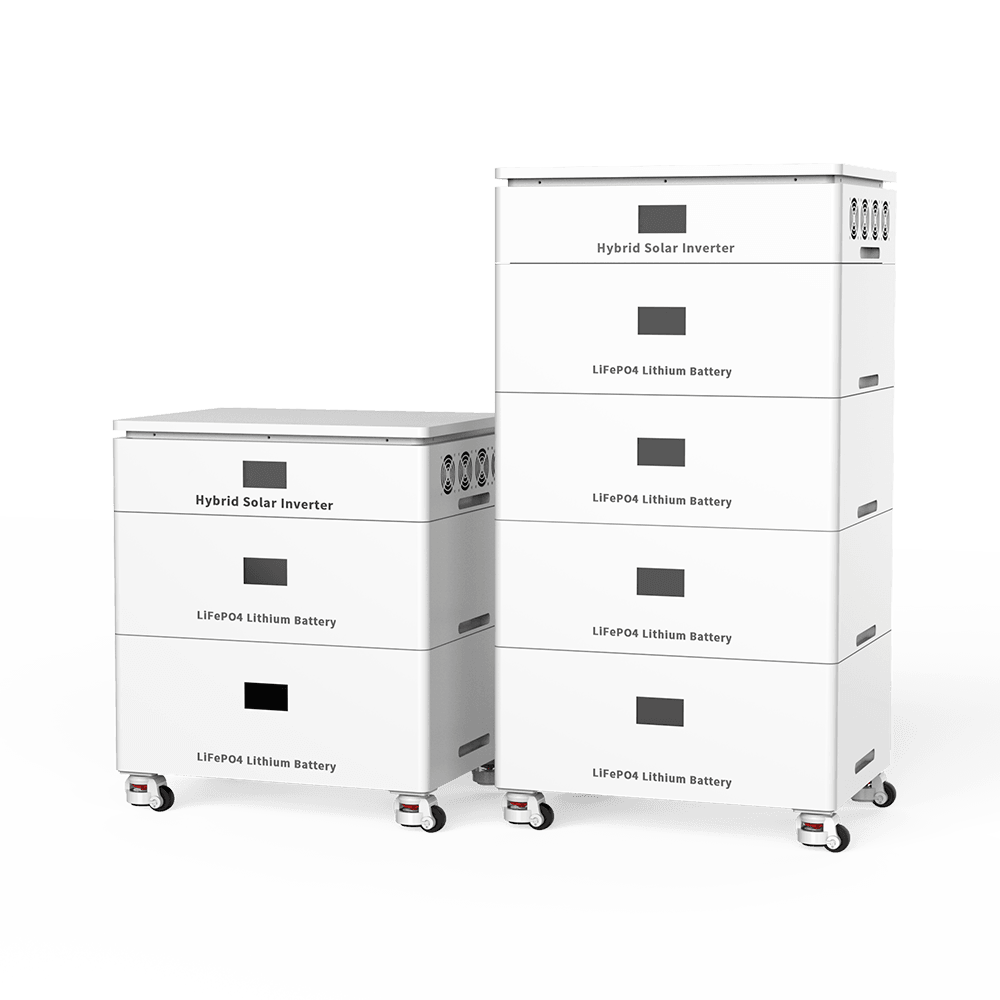

Stacked inverter energy storage all-in-one machine
Model:ESS HX PRO
An all-in-one system with built-in 51.2V lithium-ion battery modules, a 6-10kW hybrid solar inverter, and a solar/AC charger.
The modular and stackable design allows for easy installation and expansion.
It features a built-in intelligent BMS with communication protocols.
The iFPO4 battery has a cycle life of up to 5,000 charge/discharge cycles.
It features 120A MPPT solar charging and AC charging.
It offers comprehensive protection.
It has an 80% DOD rating, a 5-year warranty, and a 10+ year lifespan.
Feature
An all-in-one system with built-in 51.2V lithium-ion battery modules, a 6-10kW hybrid solar inverter, and a solar/AC charger.
The modular and stackable design allows for easy installation and expansion.
It features a built-in intelligent BMS with communication protocols.
The iFPO4 battery has a cycle life of up to 5,000 charge/discharge cycles.
It features 120A MPPT solar charging and AC charging.
It offers comprehensive protection.
It has an 80% DOD rating, a 5-year warranty, and a 10+ year lifespan.
Details
| Model | ESS HX PRO 6KW/10KWH | ESS HX PRO 8KW/10KWH | ESS HX PRO 8KW/15KWH | ESS HX PRO 10KW/20KWH |
| inverter | ||||
| Inverter model | 6KW/48V Hy brid | 8KW/48V Hy brid | 8KW/48V Hy brid | 10KW/48V Hy brid |
| power | 6KW | 8KW | 8KW | 10KW |
| Output waveform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave |
| lithium battery | ||||
| Battery module | 51.2V100Ah*2 | 51.2V100Ah*2 | 51.2V100Ah*3 | 51.2V100Ah*4 |
| voltage | 51.2Vdc | 51.2Vdc | 51.2Vdc | 51.2Vdc |
| capacity | 200AH | 200AH | 300AH | 400AH |
| energy | 10.24KWh | 10.24KWh | 15.36KWh | 20.48KWh |
| float charge voltage | 56.0Vdc | 56.0Vdc | 56.0Vdc | 56.0Vdc |
| Voltage range | 40.0Vdc~58.4Vdc | 40.0Vdc~58.4Vdc | 40.0Vdc~58.4Vdc | 40.0Vdc~58.4Vdc |
| Maximum continuous charging current | 100A | 100A | 150A | 200A |
| Maximum continuous discharge current | 200A | 200A | 300A | 400A |
| Maximum pulse discharge current | 150A 1Sec. | 300A 1Sec. | 450A 1Sec. | 600A 1Sec. |
| Operating temperature | -10℃~+50℃ | -10℃~+50℃ | -10℃~+50℃ | -10℃~+50℃ |
| Battery type | Lithium iron phosphate LiFePO4 | |||
| Input voltage | 208/220/230/240；L+N+PE | |||
| Voltage range | 90~280+3（normal mode）; 170~280+3(UPS mode) | |||
| Power rating | 6KW | 8KW | 8KW | 10KW |
| Peak power | 12KW | 16KW | 16KW | 20KW |
| Output voltage | 208/220/230/240 | |||
| frequency | 50HZ/60HZ（Auto） | |||
| AC charging current | 80A Max | 100A Max | 100A Max | 140A Max |
| Photovoltaic input | ||||
| Rated voltage | 360Vdc | |||
| Voltage range | 120Vdc~450Vdc | |||
| Open circuit voltage | 500Vdc | |||
| Photovoltaic charging current | 120A Max. | |||
| protection | Overcharge protection, over-discharge protection, over-current protection, short-circuit protection, over-temperature protection | |||
| Protection level | IP20 | |||
| display | display | |||
| relative humidity | 0~95% | |||
| Maximum working altitude | ≤1500 | |||
| Product Size (mm) | 670*460*525 | 670*460*525 | 670*460*675 | 670*460*825 |
| Package Size (mm) | 750*540*255*3 | 750*540*255*3 | 750*540*255*4 | 750*540*255*5 |
| net weight | 108Kg | 153Kg | 198Kg | 243Kg |
| gross weight | 118Kg | 166Kg | 214Kg | 262Kg |
