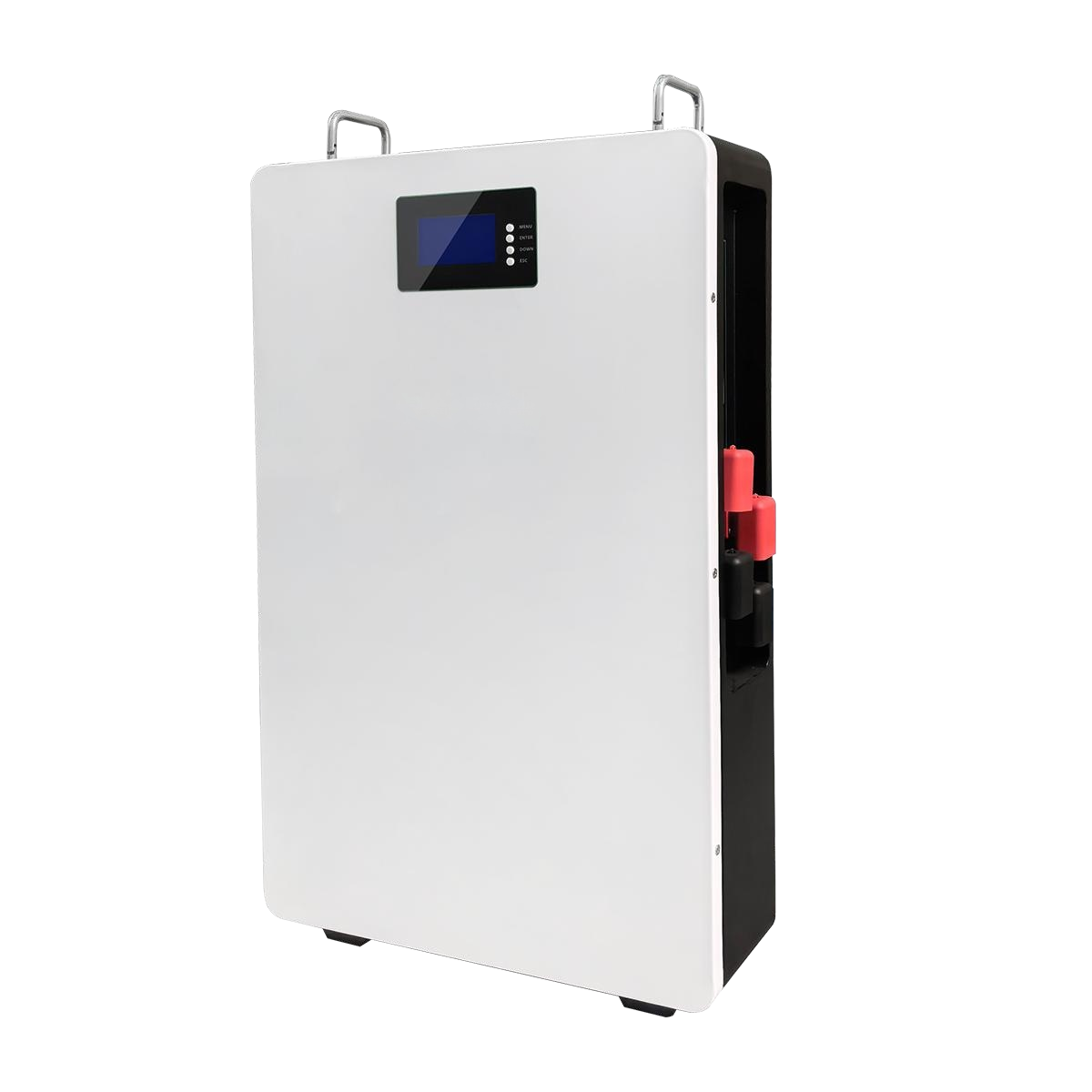

Wall-mounted lithium battery
Model:HA PRO series
Over 6000 cycles of charge and discharge life
Excellent standby power consumption as low as 4mA
Equipped with overcharge and over discharge protection function
Built in intelligent BMS to keep the battery working at its optimal state at all times
It has overcurrent and short-circuit protection functions.
Automatically cut off output without charging or discharging for 30 days to ensure safety, or manually cut off output
It has over temperature protection function.
Support communication with multiple brands of inverters.
Suitable for solar power generation systems.
Design with a 10-year long lifespan.
Lithium iron phosphate batteries are more stable and safer.
Feature
Over 6000 cycles of charge and discharge life
Excellent standby power consumption as low as 4mA
Equipped with overcharge and over discharge protection function
Built in intelligent BMS to keep the battery working at its optimal state at all times
It has overcurrent and short-circuit protection functions.
Automatically cut off output without charging or discharging for 30 days to ensure safety, or manually cut off output
It has over temperature protection function.
Support communication with multiple brands of inverters.
Suitable for solar power generation systems.
Design with a 10-year long lifespan.
Lithium iron phosphate batteries are more stable and safer.
Details
| Model | HA PRO Series25.6V100Ah | HA PRO Series25.6V200Ah | HA PRO Series51.2V100Ah | HA PRO Series51.2V200Ah |
| Battery type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Battery model | 25.6V100Ah | 25.6V200Ah | 51.2V100Ah | 51.2V200Ah |
| Normal Capacity (25°C, 0.2C) | 2560Wh | 5120Wh | 5120Wh | 10240Wh |
| Voltage range (Vdc) | 22.4~58.4V | 22.4~58.4V | 44.8~58.4V | 44.8~58.4V |
| Fast Charge Voltage (Vdc) | 28.0V | 28.0V | 56.0V | 56.0V |
| Low Voltage Termination Voltage (Vdc) | 23.4V | 23.4V | 46.8V | 46.8V |
| Maximum Continuous Discharge Current (A) | 100 | 100 | 100 | 100 |
| Maximum Pulse Discharge Current (A) | 150A 1Sec. | 150A 1Sec. | 150A 1Sec. | 150A 1Sec. |
| Maximum Continuous Charging Current (A) | 50 | 50 | 100 | 100 |
| IP | IP 20 | IP 20 | IP 20 | IP 20 |
| Terminal | M8 | |||
| Storage temperature | 0℃~30℃ | |||
| Storage duration | 6 months, 25°C | |||
| Safety standards | UN38.3,MSDS | |||
| communication | RS485/CAN (Brands that support communication with inverters: Deye, Growatt, Voltronic, GOODWE, VICTRON, PYLONTEC, SMA, SOFAR) | |||
| protection | ||||
| protection | Overcharge protection, over-discharge protection, over-current protection, short-circuit protection, over-voltage protection, over-temperature protection | |||
| environment | ||||
| Operating temperature | -10℃~ +50℃ | |||
| humidity | 0~95% (no condensation) | |||
| Altitude ()m) | ≤1500 | |||
| size | ||||
| Length× width× height (product size) mm | 786*455*181mm | 849*502*183mm | 1021*605*190mm | 1072*625*192mm |
| Length× width× height (package size) mm | 859*45*278(wooden box) | 909*575*293 (Wooden Case) | 1145*710*365(wooden box) | 1145*715*365(wooden case) |
| Weight (NW Kg) | 45.7Kg | 47.2kgs | 83.9Kg | 85.4Kg |
| Weight (GW Kg) | 52.0Kg | 53.5kgs | 107.5Kg | 109Kg |
