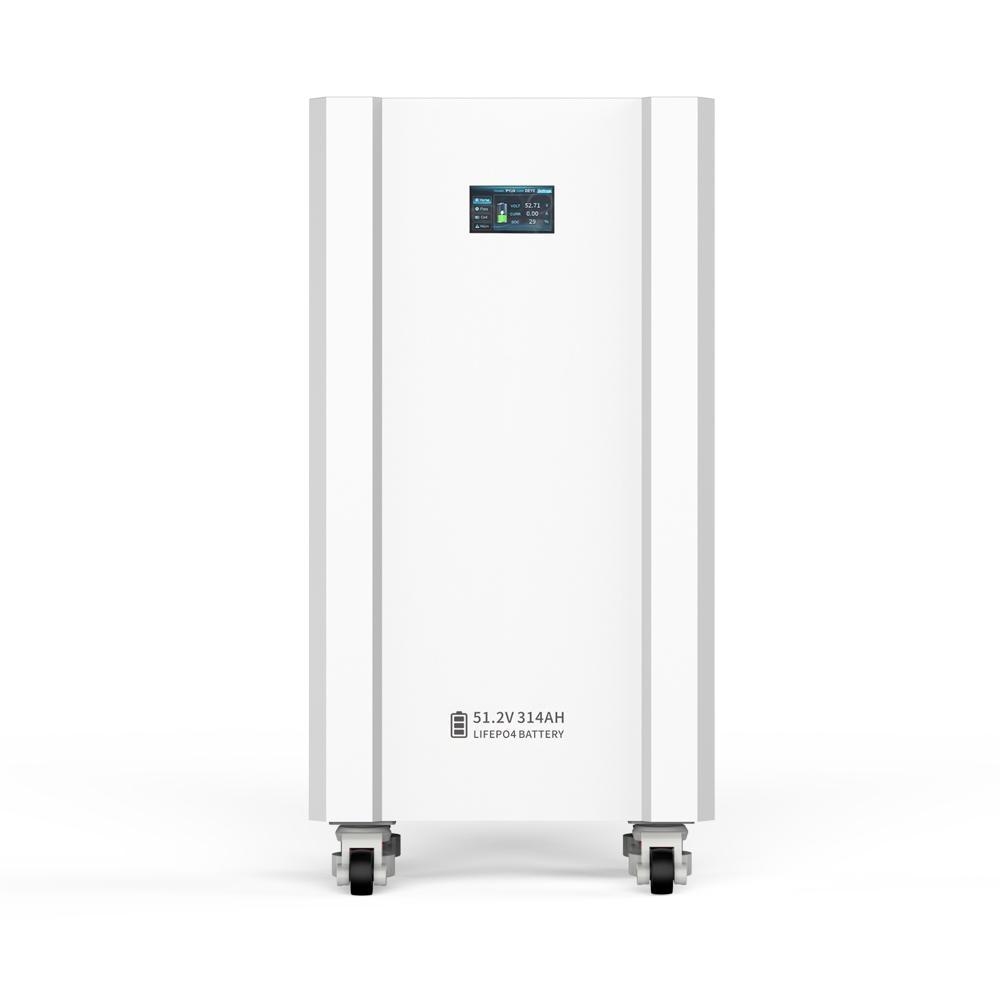

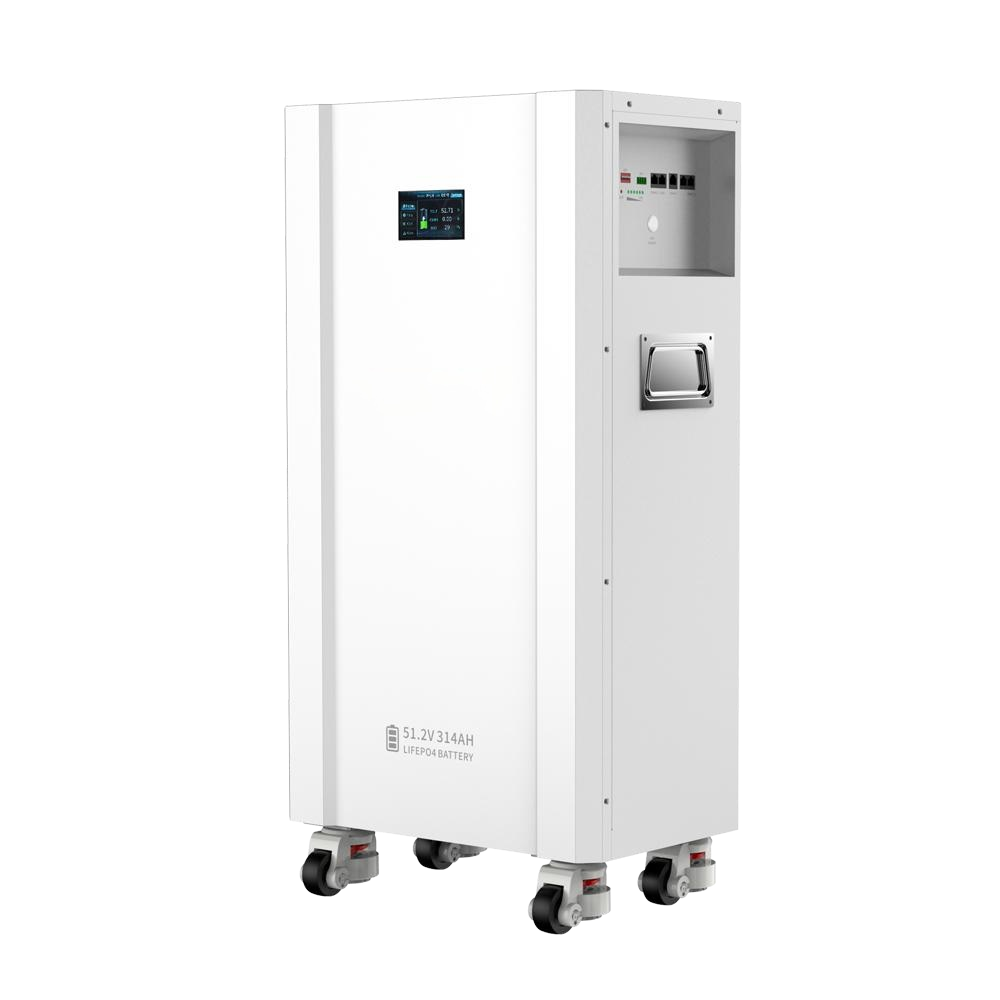

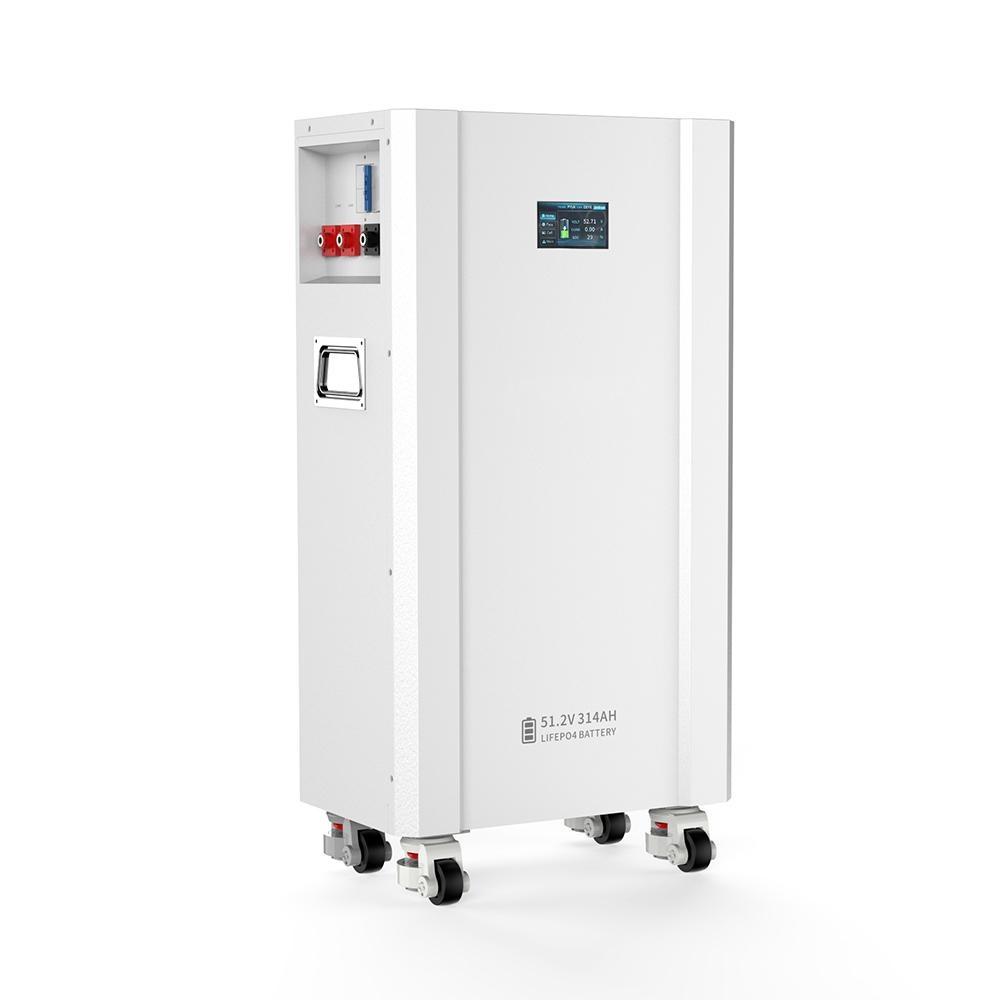

Tower lithium battery
Model:HF PRO
Grade A battery quality is strong and reliable.
The maximum charge and discharge current can reach 100A/200A, suitable for solar battery system.
5000 battery cycles, 5 years warranty, more than 10 years lifespan Design
LCD display with communication port (CAN/RS485/RS232).
Wall design, space-saving design.
Optional 48V intelligent BMS can communicate
with different brands of hybrid solar inverters Sturdy and durable, reliable quality
Feature
Grade A battery quality is strong and reliable.
The maximum charge and discharge current can reach 100A/200A, suitable for solar battery system.
5000 battery cycles, 5 years warranty, more than 10 years lifespan Design
LCD display with communication port (CAN/RS485/RS232).
Wall design, space-saving design.
Optional 48V intelligent BMS can communicate
with different brands of hybrid solar inverters Sturdy and durable, reliable quality
Details
| model | HF PRO 25.6V300Ah | HF PRO 51.2V300Ah |
| Case design | Tower | Tower |
| Battery type | LiFePO4 | LiFePO4 |
| Normal battery model | 25.6V300AH | 51.2V300AH |
| Normal Capacity (25°C, 0.2C) | 7680Wh | 15360KWh |
| Voltage range (Vdc) | 22.4~29.2V | 44.8~58.4V |
| Fast Charge Voltage (Vdc) | 28.0V | 56.0V |
| Maximum Continuous Discharge Current (A) | 150A | 150A |
| Maximum Pulse Discharge Current (A) | 200A 30Sec. | 200A 30Sec. |
| Maximum Continuous Charging Current (A) | 100A | 100A |
| Terminal | M8 | |
| Storage temperature | 0℃~30℃ | |
| Storage duration | 6 months at 25°C | |
| Safety standards | UN38.3,MSDS | |
| IP degree | IP20 | |
| Communication function | CAN/RS485/RS232 smart BMS can communicate with multiple solar inverters, such as: Deye, Growatt, Voltronic, GOODWE, SMA, SOFAR, etc. | |
| protection | ||
| protection | Overcharge protection, over-discharge protection, over-current protection, short circuit protection, over-temperature protection | |
| environment | ||
| Noise (dB) | < 40dB (1 m) | |
| Operating temperature | Discharge: -10°C~+50°C, Charging: 0°C~+50°C | |
| humidity | 0~95% (no condensation) | |
| Sea level (m) | ≤1500 | |
| size | ||
| Length× width× height (product size) mm | 453*406*497mm | 800X410X286 |
| Length× width× height (package size) mm | 508*461*532mm | 930*490*370mm |
| Weight (NW Kg) | 82.3Kg | 145.0Kg |
| Weight (GW Kg) | 87.0Kg | 158.0Kg |
