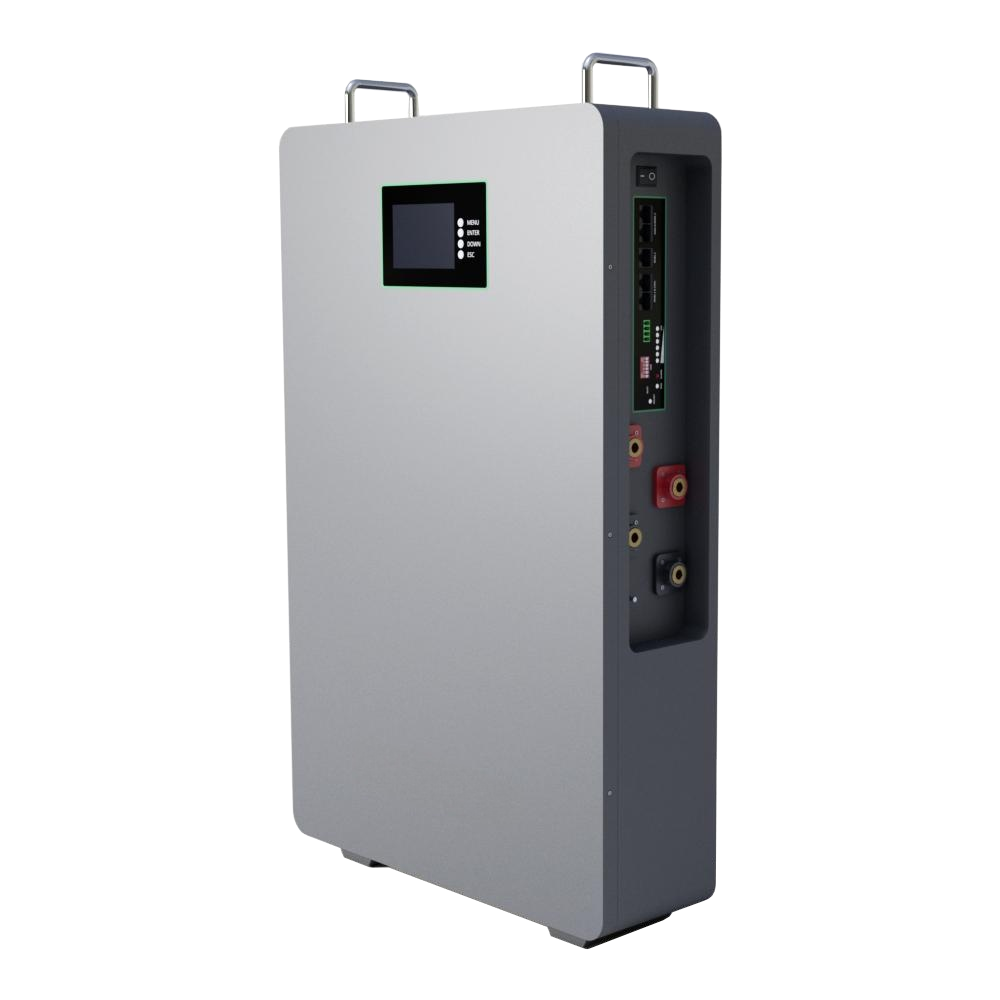

Wall-mounted lithium battery
Model:HA PLUS series
Large brand A-grade battery cells with stable and reliable quality
High current charging and discharging, up to 100A/200A, suitable for energy storage systems
6000 cycles, 5-year warranty, and a design lifespan of over 10 years
LCD display screen with communication port (CAN/RS485/RS232)
Battery wall design, space saving design
Comprehensive protection, high density, small size, and light weight
Intelligent BMS can communicate with hybrid solar inverters of different brands (optional)
Feature
Large brand A-grade battery cells with stable and reliable quality
High current charging and discharging, up to 100A/200A, suitable for energy storage systems
6000 cycles, 5-year warranty, and a design lifespan of over 10 years
LCD display screen with communication port (CAN/RS485/RS232)
Battery wall design, space saving design
Comprehensive protection, high density, small size, and light weight
Intelligent BMS can communicate with hybrid solar inverters of different brands (optional)
Details
| Model | HA PLUS Series25.6V100Ah | HA PLUS Series25.6V200Ah | HA PLUS Series51.2V100AH | HA PLUS Series51.2V200AH |
| Battery type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Battery model | 25.6V100AH | 25.6V200AH | 51.2V100AH | 51.2V200AH |
| Normal Capacity (25°C, 0.2C) | 2560Wh | 5120Wh | 5120Wh | 10.24KWh |
| Voltage range (Vdc) | 22.4~29.2V | 22.4~29.2V | 44.8~58.4V | 44.8~58.4V |
| Fast Charge Voltage (Vdc) | 28.0V | 28.0V | 55.2V | 55.2V |
| Maximum Continuous Discharge Current (A) | 100A | 150A | 100A | 150A |
| Maximum Pulse Discharge Current (A) | 150A 1Sec | 200A 1Sec | 150A 1Sec | 200A 1Sec |
| Maximum Continuous Charging Current (A) | 100A | 100A | 100A | 100A |
| Terminal | M8 | |||
| Storage temperature | 0℃~30℃ | |||
| Storage duration | 6 months at 25°C | |||
| Safety standards | UN38.3,MSDS,CE | |||
| IP | IP20 | |||
| communication | CAN/RS485/RS232 smart BMS can communicate with multiple solar inverters, such as: Deye, Growatt, Voltronic, GOODWE, SMA, SOFAR, etc. | |||
| protection | ||||
| protection | Overcharge protection, over-discharge protection, over-current protection, short circuit protection, over-temperature protection | |||
| environment | ||||
| Noise (dB) | <40dB（1m） | |||
| Operating temperature | Discharge: -10°C~+50°C, Charging: 0°C~+50°C | |||
| humidity | 0~95% (no condensation) | |||
| Sea level (m) | ≤1500 | |||
| size | ||||
| Length× width× height (product size) mm | 611*420*224mm | 611*420*224mm | 611*420*224mm | 780*460*166mm |
| Length× width× height (package size) mm | 689*479*285(UN carton) | 689*479*285(UN carton) | 689*479*285(UN carton) | 841*511*228(UN carton) |
| Weight (NW Kg) | 25.0Kg | 42Kg | 44Kg | 69Kg |
| Weight (GW Kg) | 29.0Kg | 46Kg | 49Kg | 74Kg |
