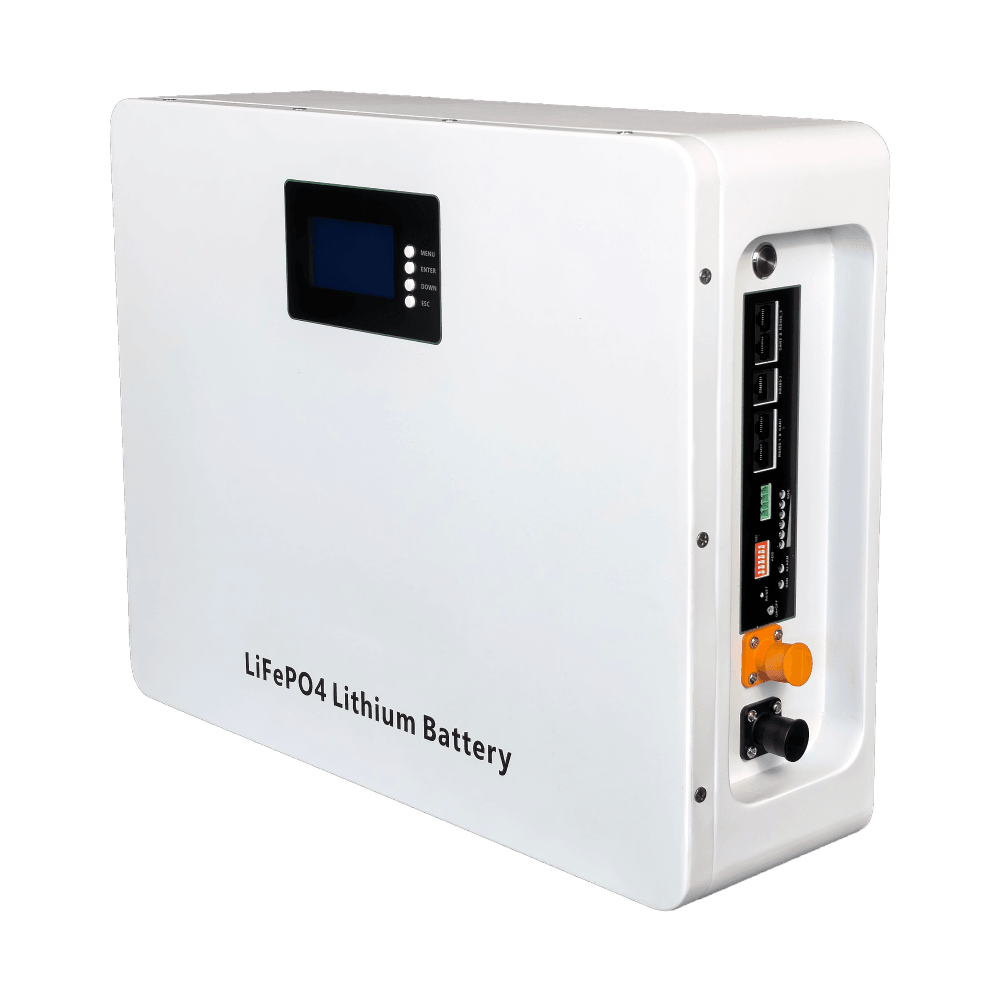

Wall-mounted lithium battery
Model:HA series
24V/48V lithium iron phosphate battery, wall mounted design
Adopting an intelligent BMS system for comprehensive protection
Big brand battery cells, reliable quality
High density, small volume, light weight
The maximum discharge current can reach 200A, suitable for inverters or solar energy systems
LCD display screen, optional communication port (CAN/RS485/RS232)
Long life design, battery cycle time up to 4000 times, 3-year warranty, designed for a lifespan of over 10 years
Comprehensive protection and unmanned operation
Feature
24V/48V lithium iron phosphate battery, wall mounted design
Adopting an intelligent BMS system for comprehensive protection
Big brand battery cells, reliable quality
High density, small volume, light weight
The maximum discharge current can reach 200A, suitable for inverters or solar energy systems
LCD display screen, optional communication port (CAN/RS485/RS232)
Long life design, battery cycle time up to 4000 times, 3-year warranty, designed for a lifespan of over 10 years
Comprehensive protection and unmanned operation
Details
| Model | HA-25.6V100Ah | HA-25.6V200Ah | HA-51.2V100Ah | HA-51.2V200Ah |
| Types of structures | Wall mounted | Wall mounted | Wall mounted | Wall mounted |
| Battery type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Normal battery voltage (Vdc) | 25.6V | 25.6V | 51.2V | 51.2V |
| Normal capacity (25°C0.2C) (Ah) | 100Ah | 200Ah | 100Ah | 200Ah |
| Normal Charge (25°C0.2C) (Ah) | 2560WH | 5120WH | 5120WH | 10240WH |
| Fast Charge Voltage (Vdc) | 28.0V | 28.0V | 56.0V | 56.0V |
| Operating Voltage Range (Vdc) | 22.4~ 29.2V | 22.4~ 29.2V | 44.8~ 58.4V | 44.8~ 58.4V |
| Maximum continuous discharge current (A) | 100A | 150A | 100A | 150A |
| Maximum Pulse Discharge Current (A) | 200A 30 Sec. | 200A 30 Sec. | 200A 30 Sec. | 200A 30 Sec. |
| Maximum continuous charging current (A) | 50A | 100A | 50A | 100A |
| Terminal | M8 | |||
| Storage temperature | 0℃~30℃ | |||
| IP | IP 20 | |||
| Storage duration | 6 months at 25°C | |||
| Safety standards | UN38.3,IEC62619,CE | |||
| display | LCD display (optional) | |||
| correspondence | CAN/RS485/RS232 (Optional) | |||
| protection | ||||
| protection | Overcharge protection, over-discharge protection, over-voltage protection, short-circuit protection, over-temperature protection | |||
| environment | ||||
| Operating temperature | -10℃~+50℃ | |||
| humidity | 0~95% (non-condensing) | |||
| Sea level (m) | ≤1500 | |||
| size | ||||
| Length× width× height (product size, mm) | 414*372*227mm | 584*580*207mm | 550*375*227mm | 606*380*265 |
| Length× width× height (package size, mm) | 496*469*275mm | 668*666*255mm | 612*422*259mm | 672*452*302 |
| Weight (NW Kg) | 23.2Kg | 72.6Kg | 39.7Kg | 76.0Kg |
| Weight (GW Kg) | 25.0Kg | 76.7Kg | 42.1Kg | 83.0Kg |
