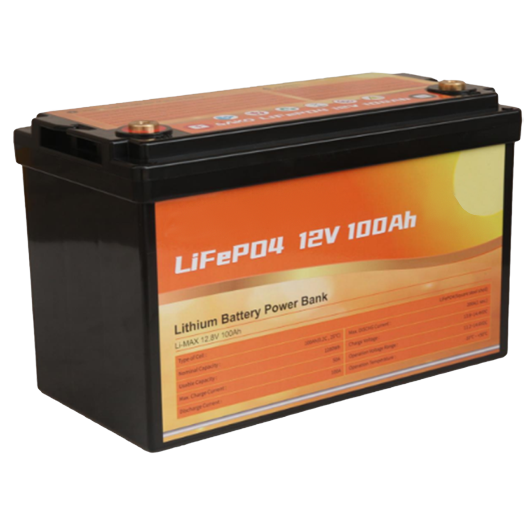

Lithium-lead batteries
Model:HD PLUS
12V24V LiFePO4 package, safe and reliable
Adopting an intelligent BMS system for comprehensive protection.
A-class batteries are of sturdy and reliable quality.
High density, small volume, and light weight.
The maximum discharge current can reach 200A, suitable for inverters or UPS systems
Plastic casing, ideal choice for replacing lead-acid batteries
Long life design, battery cycle time can reach 3000 times, 5-year+life design.
Support series or parallel connection
Bluetooth monitor is optional.
Feature
12V24V LiFePO4 package, safe and reliable
Adopting an intelligent BMS system for comprehensive protection.
A-class batteries are of sturdy and reliable quality.
High density, small volume, and light weight.
The maximum discharge current can reach 200A, suitable for inverters or UPS systems
Plastic casing, ideal choice for replacing lead-acid batteries
Long life design, battery cycle time can reach 3000 times, 5-year+life design.
Support series or parallel connection
Bluetooth monitor is optional.
Details
| Model specifications | HD PLUS12.8V50AH | HD PLUS 12.8V100AH | HD PLUS 12.8V150AH | HD PLUS 12.8V200AH | HD PLUS 25.6V100AH | HD PLUS 25.6V150AH |
| Battery type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Normal battery model | 12.8V50AH | 12.8V100AH | 12.8V150AH | 12.8V200AH | 25.6V100AH | 25.6V150AH |
| Normal Capacity (25°C, 0.2C) | 640WH | 1280WH | 1920WH | 2560WH | 2560WH | 3840WH |
| Voltage Window (Vdc) | 11.2~ 14.6V | 11.2 ~ 14.6V | 11.2 ~ 14.6V | 11.2~ 14.6V | 22.4~ 29.2V | 22.4 ~ 29.2V |
| Folded Charge Voltage (Vdc) | 14.0V | 14.0V | 14.0V | 14.0V | 28.0V | 28.0V |
| Maximum continuous discharge current | 50A | 100A | 100A | 200A | 100A | 150A |
| Maximum pulse discharge current | 100A 1Sec. | 200A 1Sec. | 200A 1Sec. | 300A 1Sec. | 200A 1Sec. | 200A 1Sec. |
| Maximum continuous charging current | 25A | 50A | 100A | 100A | 50A | 75A |
| Terminal | M6 | M8 | ||||
| Storage temperature | 0℃~30℃ | |||||
| Storage duration | 6 months at 25°C | |||||
| Safety standards | UN38.3,MSDS,CE | |||||
| IP degree | IP65 | |||||
| protection | ||||||
| protection | Overcharge protection, over-discharge protection, over-current protection, short circuit protection, over-temperature protection | |||||
| environment | ||||||
| Operating temperature | -10℃~+50℃ | |||||
| humidity | 0~95% (no condensation) | |||||
| Sea level (m) | ≤1500 | |||||
| size | ||||||
| Length× width× height (product size) mm | 231*145*211 | 332*172*220 | 484*170*240 | 522*218*238 | 522*218*238 | 522*218*238 |
| Length× width× height (package size) mm | 239*154*252 | 342*181*265 | 497*180*292 | 532*252*268 | 532*252*268 | 532*252*268 |
| Weight (NW Kg) | 5.5kg | 12.0kg | 15.0kgs | 27.0Kg | 27.0Kg | 30.0Kg |
| Weight (GW Kg) | 6.0kg | 13.0kg | 16.0kg | 28.0Kg | 28.0Kg | 32.0Kg |
