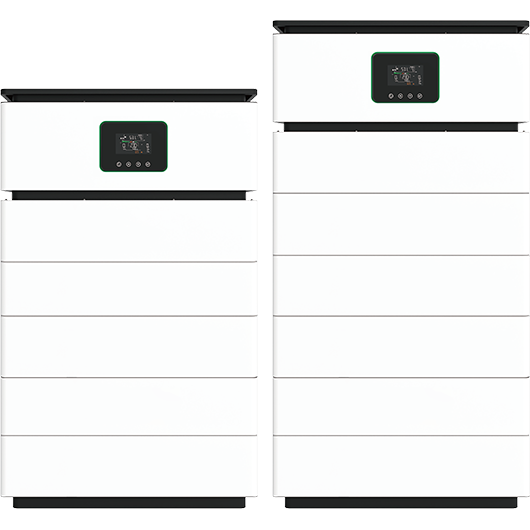

Solar inverter energy storage system
Model:ESS HX PRO
Integrated system with built-in 48V lithium battery module.
6kW hybrid solar inverter, solar/AC charger.
LiFPO4 battery has a cycle time of up to 6000 charge/discharge cycles and a long lifespan
Equipped with 120A mppt solar charging and AC charging functions
Modular and stacked design, easy to install and expand
comprehensive protection
Built in intelligent BMS with communication protocol
DOD 80%，
Warranty for 5 years, designed for a lifespan of over 10 years
Five year warranty.
Feature
Integrated system with built-in 48V lithium battery module.
6kW hybrid solar inverter, solar/AC charger.
LiFPO4 battery has a cycle time of up to 6000 charge/discharge cycles and a long lifespan
Equipped with 120A mppt solar charging and AC charging functions
Modular and stacked design, easy to install and expand
comprehensive protection
Built in intelligent BMS with communication protocol
DOD 80%，
Warranty for 5 years, designed for a lifespan of over 10 years
Five year warranty.
Details
| specification | ESS HX PRO 6KW/5KWH | ESS HX PRO 6KW/10KWH | ESS HX PRO 6KW/15KWH | ESS HX PRO 6KW/20KWH |
| Inverter/charger | ||||
| Inverter type | 6KW/48V | 6KW/48V | 6KW/48V | 6KW/48V |
| Rated output power | 6KW | 6KW | 6KW | 6KW |
| Output voltage waveform | Pure sine wave | Pure sine wave | Pure sine wave | Pure sine wave |
| Output voltage | 230VAC 50HZ | 230VAC 50HZ | 230VAC 50HZ | 230VAC 50HZ |
| Low DC warning voltage | 45.8Vdc | 45.8Vdc | 45.8Vdc | 45.8Vdc |
| Low DC cut-off voltage | 44.8Vdc | 44.8Vdc | 44.8Vdc | 44.8Vdc |
| DC warning loop low voltage | 46.8Vdc | 46.8Vdc | 46.8Vdc | 46.8Vdc |
| Total Charging Current (Grid + Solar) | 120A Max. | 120A Max. | 120A Max. | 120A Max. |
| Large capacity charging voltage | 57.6Vdc | 57.6Vdc | 57.6Vdc | 57.6Vdc |
| Floating charging voltage | 56.0Vdc | 56.0Vdc | 56.0Vdc | 56.0Vdc |
| Lithium iron battery | ||||
| Normal battery module | 51.2V100Ah*1 | 51.2V100Ah*2 | 51.2V100Ah*3 | 51.2V100Ah*4 |
| Normal Capacity (25°C, 0.2C) | 5.12KWh | 10.24KWh | 15.36KWh | 20.48KWh |
| Nominal battery voltage | 51.2Vdc | 51.2Vdc | 51.2Vdc | 51.2Vdc |
| Nominal capacity | 100AH | 200AH | 300AH | 400AH |
| Maximum charging current | 150A 1Sec. | 300A 1Sec. | 450A 1Sec. | 600A 1Sec. |
| Maximum discharge current | 50A | 100A | 150A | 200A |
| Operating voltage range | 44.8Vdc~ 58.4Vdc | 44.8Vdc~ 58.4Vdc | 44.8Vdc~ 58.4Vdc | 44.8Vdc~ 58.4Vdc |
| Operating temperature | -10℃~+50℃ | -10℃~+50℃ | -10℃~+50℃ | -10℃~+50℃ |
| AC input | ||||
| Nominal input voltage | 230VAC 50HZ | |||
| Low loss voltage | 170Vac±7 (UPS), 90Vac±7% (Home Appliances) | |||
| Low loss Returm voltage | 180Vac±7 (UPS), 100Vac±7% (Home Appliances) | |||
| High loss voltage | 280Vac±7 | |||
| High loss return voltage | 270Vac±7 | |||
| Maximum AC input voltage | 300Vac | |||
| Nominal input frequency | 50Hz/60HZ (Auto Detection) | |||
| AC charging current | 120A max | |||
| Solar input | ||||
| Nominal PV voltage | 360Vdc | |||
| PV array MPPT voltage range | 120Vdc～450Vdc | |||
| Maximum PV array open circuit voltage | 500Vdc | |||
| Solar charging current is the largest | 120A | |||
| protection | ||||
| protection | Overcharge protection, over-discharge protection, over-current protection, short-circuit protection, over-temperature protection | |||
| environment | ||||
| Noise (dB) | <30°C<40dB (1 meter) | |||
| Operating temperature | -10℃~+50℃ | |||
| humidity | 0~95% (non-condensing) | |||
| Sea level (m) | ≤1500 | |||
| other | ||||
| efficiency | 92.00% | |||
| Warranty | 5 years | |||
