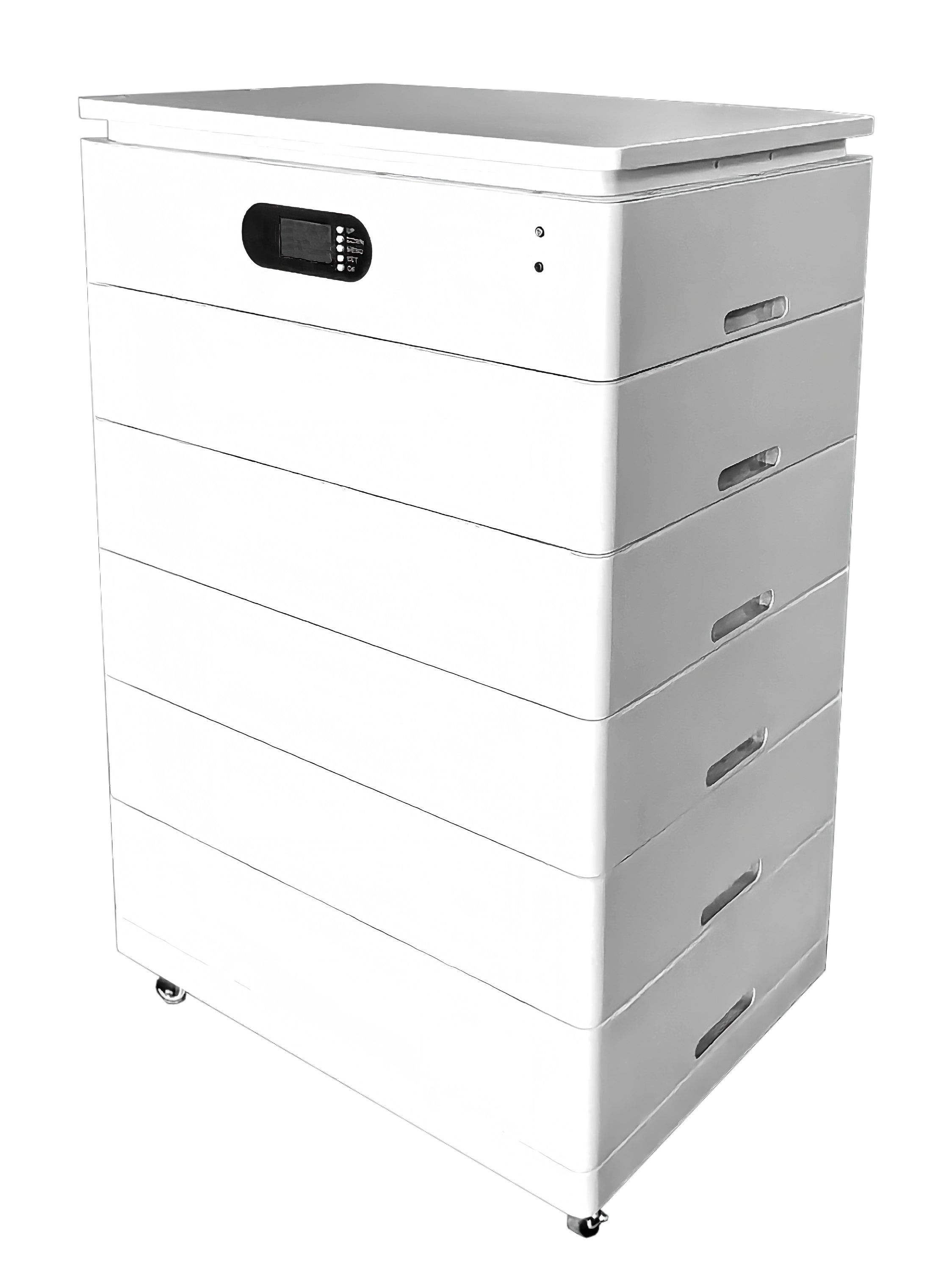

Stacked high-voltage energy storage battery
Model:HV PRO
Top brand, Grade A batteries, premium quality.
High density, compact size, and lightweight.
Battery cycle life: 5,000 cycles.
Long life: 5-year warranty, 10+ year design.
High discharge current, suitable for solar systems.
Intelligent BMS system optimizes performance.
Communication: RS485/CAN, compatible with solar inverters from various brands.
High-voltage lithium battery system with modular stacking design.
Intelligent BMS supports communication with hybrid inverters from the following brands.
Feature
Top brand, Grade A batteries, premium quality.
High density, compact size, and lightweight.
Battery cycle life: 5,000 cycles.
Long life: 5-year warranty, 10+ year design.
High discharge current, suitable for solar systems.
Intelligent BMS system optimizes performance.
Communication: RS485/CAN, compatible with solar inverters from various brands.
High-voltage lithium battery system with modular stacking design.
Intelligent BMS supports communication with hybrid inverters from the following brands.
Details
| Model | HV PRO 10.2KWh | HV PRO 15.3KWh | HV PRO 20.4KWh | HV PRO 25.6KWh | HV PRO 30.7KWh | HV PRO 35.8KWh | HV PRO 40.9KWh | HV PRO 46.0KWh | HV PRO 51.2KWh |
| Design style | Stacked | ||||||||
| Battery type | Lithium iron phosphate | ||||||||
| Battery module | 51.2V100AH | ||||||||
| Number of modules | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Capacity (Ah) | 10.24KWh | 15.36KWh | 20.48KWh | 25.60KWh | 30.72KWh | 35.84KWh | 35.84KWh | 46.08KWh | 51.20KWh |
| voltage | 102.4V | 153.6V | 204.8V | 256.0V | 307.2V | 358.4V | 409.6V | 460.8V | 512.0V |
| Voltage window | 80-116.8V | 120-175.2V | 160-233.6V | 200-292V | 240-350.4V | 280-408.8V | 320-467.2V | 360-525.6V | 400-584.0V |
| size | 700x500x525 | 700x500x675 | 700x500x825 | 700x500x975 | 700x500x1125 | 700x500x1275 | 700x500x1425 | 700x500x1575 | 700x500x1725 |
| net weight | 118Kg | 163Kg | 208Kg | 253Kg | 298Kg | 343Kg | 388Kg | 433Kg | 478Kg |
| Nominal charge/discharge current (A) | 50A | ||||||||
| Maximum Charge/Discharge Current (A) | 100A | ||||||||
| Terminal | M8 | ||||||||
| Storage temperature | 0℃~30℃ | ||||||||
| Storage period | 6 months at 25°C | ||||||||
| Safety standards | UN38.3,MSDS | ||||||||
| Protection level | IP20 | ||||||||
| display | LCD | ||||||||
| communication | CAN,RS485 | ||||||||
| protection | Overcharge protection, over-discharge protection, over-current protection, short-circuit protection, over-temperature protection | ||||||||
| Operating temperature | -10℃~+50℃ | ||||||||
| humidity | 0~95% | ||||||||
| Highest altitude | ≤1500 | ||||||||
