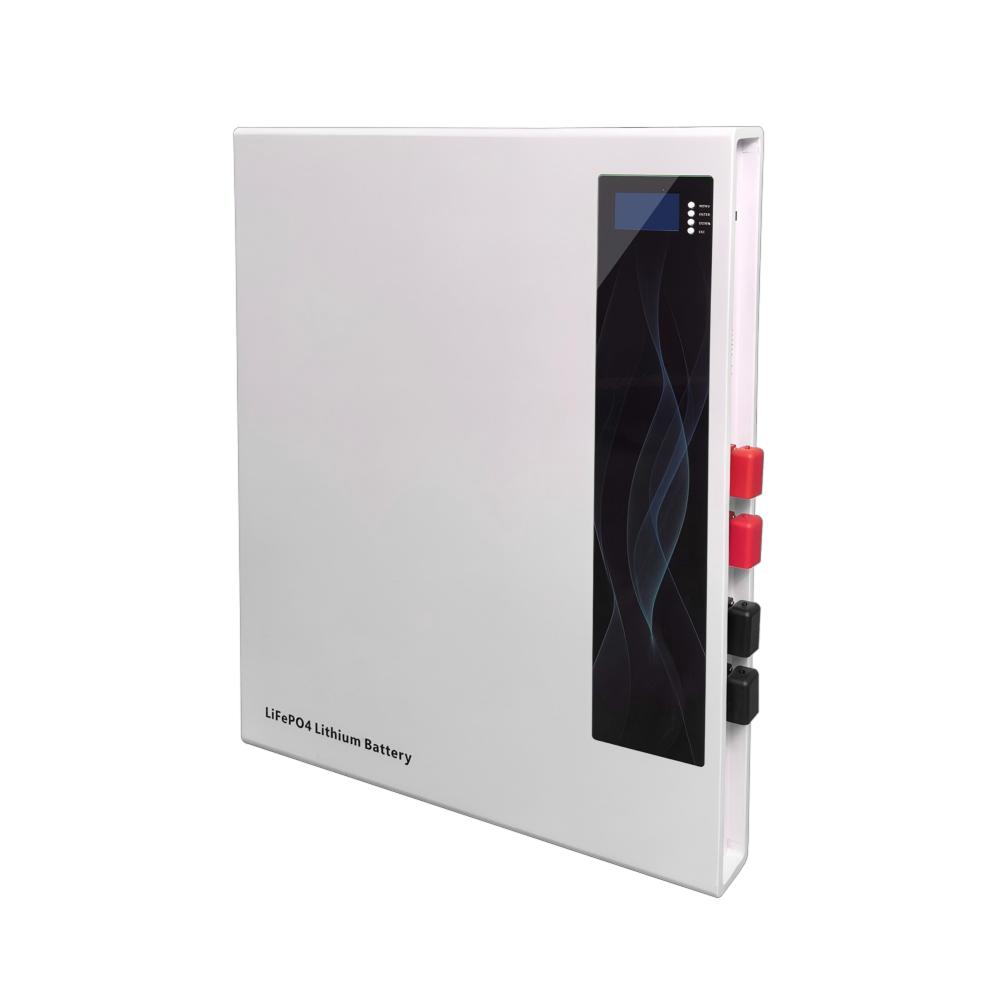

Ultra-thin wall-mounted lithium battery
Model:HA MAX
The charge/discharge cycle life exceeds 5,000 times.
Overcharge and over-discharge protection.
Overcurrent and short-circuit protection.
Overtemperature protection.
Suitable for off-grid solar photovoltaic power generation systems.
Built-in intelligent battery management system ensures the battery is always in optimal working condition.
Automatically shuts off output after 30 days of no charging or discharging, ensuring that output can also be manually shut off.
The intelligent BMS has multiple built-in communication protocols.
5-year warranty. 10-year service life. Lithium iron phosphate battery for greater stability and safety.
Feature
The charge/discharge cycle life exceeds 5,000 times.
Overcharge and over-discharge protection.
Overcurrent and short-circuit protection.
Overtemperature protection.
Suitable for off-grid solar photovoltaic power generation systems.
Built-in intelligent battery management system ensures the battery is always in optimal working condition.
Automatically shuts off output after 30 days of no charging or discharging, ensuring that output can also be manually shut off.
The intelligent BMS has multiple built-in communication protocols.
5-year warranty. 10-year service life. Lithium iron phosphate battery for greater stability and safety.
Details
| Model | HA MAX Series25.6V100Ah | HA MAX Series51.2V200Ah |
| Design style | Wall mounted | Wall mounted |
| Battery type | Lithium iron phosphate | Lithium iron phosphate |
| voltage | 25.6V | 51.2V |
| capacity | 100Ah | 50Ah |
| energy | 2560WH | 2560WH |
| float charge voltage | 28.0V | 56.0V |
| Voltage range | 20.0~29.2V | 40.0~58.4V |
| Maximum continuous charging current (A) | 50A | 25A |
| Maximum continuous discharge current (A) | 100A | 50A |
| Maximum Pulse Discharge Current (A) | 150A 1Sec | 75A 1Sec |
| Terminal | M6 | M8 |
| Storage temperature | 0℃~30℃ | |
| Protection level | IP20 | |
| Storage period | June 25 degrees Celsius | |
| Safety standards | UN38.3,MSDS | |
| Display (optional) | LCD | |
| communication | CSN,RS485 | |
| protection | Overcharge protection, over-discharge protection, over-current protection, short-circuit protection, over-temperature protection | |
| Operating temperature | -10℃~+50℃ | |
| humidity | 0~95% | |
| Highest altitude | ≤1500 | |
| Product size L*W*H | 460x360x139mm | 460x360x139mm |
| Packing size: L*W*H | 540x440x219mm | 540x440x219mm |
| net weight | 23.2Kg | 23.2Kg |
| gross weight | 25.0Kg | 25.0Kg |
